zehaztapenak
1.stainless steel alloy fastener 17-4PH bolts
2.grarnteed quality
3.reasonable price
4. entrega azkarra
5.ISO 9001:200
Produktuaren xehetasuna

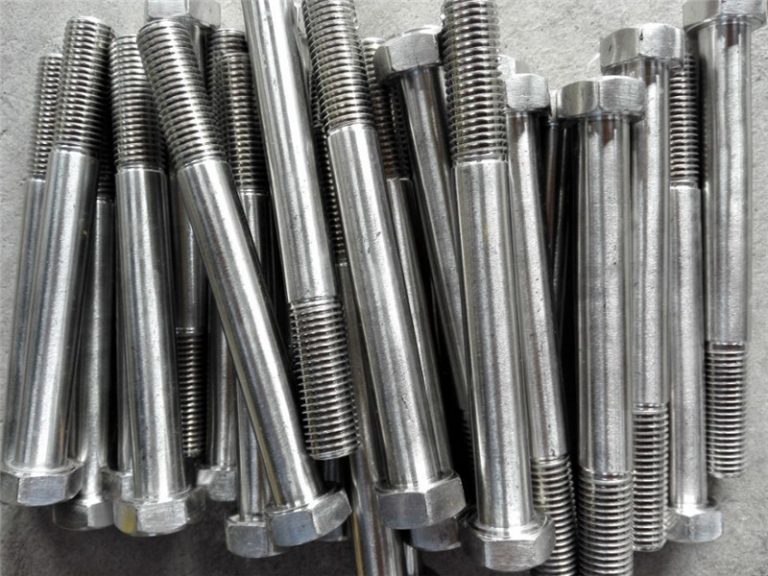

Elementuaren izena | Stainles Steel Alloy Fastener 17-4PH Bolts |
Material | 1. Stainless steel: 17-4PH, 254, 321, 904L, A-286, B8, B8C, B8M etc. 2. Super duplex stainless steel: 2205, 2507, S31803, S32750, S32760 etc. 3. Special alloy: Titanioa: Gr2, Gr5 Monel: 400, K-500 Zirkonioa: 702, 705 Nimonic: 75, 80A, 90 Nikel aleazioa: 20, 28, 200, 201 Inconel: 600, 601, 625, 718, X-750 Hastelloy: B-2, B-3, C-22, C-276, X Incoloy: 800, 800H, 800HT, 825, 901, 925 |
Standard | DIN912,931,933,975 etc |
Indarra Kalifikazioa | 4.8-12.9, A2-70, A4-80 etab. |
Luzera | 6mm-500mm |
Tamaina | M4-M100 (1 / 4-4 hazbete) |
Kategoria | Hex bolt, studbolt, thread rod etc. |
Gainazaleko akabera
| Zn-plated, Ni-plated, Passivated, Tin-plated, Sandblast eta Anodize, Chromate, Polish, Eletro Painting, Chrome plated etab. |
Bero Tratamendua | Tenplaketa, gogortzea, esferoidatzea eta estresa arintzea |
2. Sarrera Materiala
17-4PH / ASTM S17400
Steel 17-4 PH is a martensitic precipitation-hardening stainless steel that provides an outstanding combination of high strength, good corrosion resistance, good mechanical properties at temperatures up to 600°F(316°C), good toughness in both base metal and welds, and short-time, low-temperature heat treatments that minimize warpage and scaling.
2.1 The characteristics of 17-4PH:
(1) Formability
(2) Easy to adjust the level of intensity
(3) Good attenuation property
(4) Resistance to corrosion fatigue
(5) Strong anti-drop performance
2.2 The applications of 17-4PH:
(1) Offshore (foils, helicopter deck platforms, etc.)
(2) Food industry
(3) Pulp and paper industry
(4) Aerospace (turbine blades, etc.)
(5) Nuclear waste cask
2.3 Konposizio kimikoa,%
C | Mn | P | S | Si | Cr |
0.07max | 1.0max | 0.04max | 0.03max | 1.0max | 15.0-17.5 |
ni | Cu | Nb + Ta | |||
3.0-5.0 | 3.0-5.0 | 0.15-0.45 |
Xehetasunak
Jatorrizko lekua: Jiangsu China (Mainland)
Markaren izena: HPF, QFC
Luzera: 6mm-500mm
Tamaina: M4-M100 (1 / 4-4 hazbete)
Standard: DIN 931,933,975 etc.
Alloy steel: 17-4PH/ASTM 17400
Ikuskapena: EN 10204 3.1 ziurtagiria
Kalifikazioa: 4.8-12.9, A2-70, A4-80 etab.
Packing: carbon,pallet,wooden case etc.
Garraioa: Ozeano bidezko garraioa edo aireko garraioa
Material: Carbon steel,stainless steel, alloy steel etc.
Offer term: FOB Shanghai(according to custom
